Combined Petrol & Diesel Emissions Analyser
Designed and built by Premier Diagnostics, a British owned company based in Banbury Oxfordshire, we are renowned for being the first to introduce Cableless Smokehead technology worldwide.

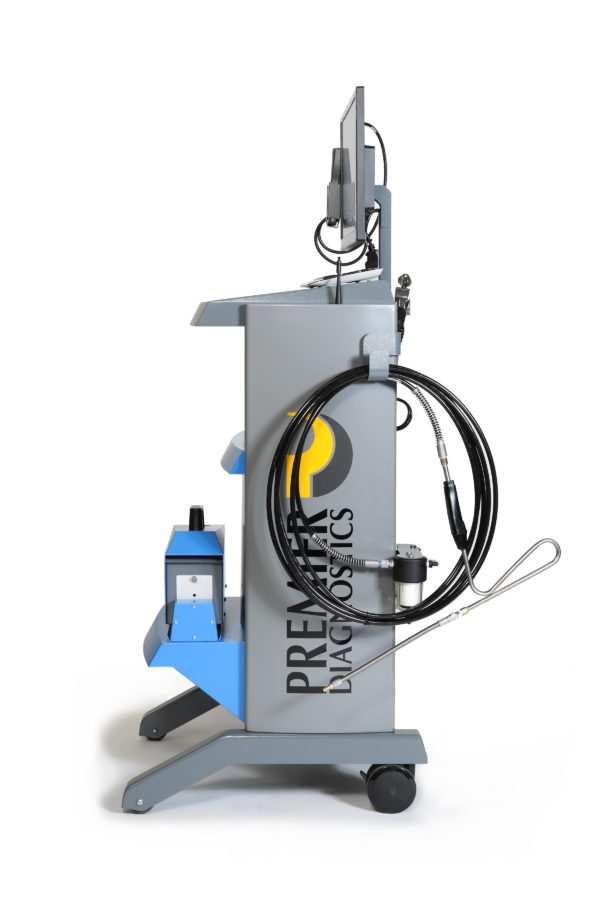

The robust and reliable Premier Combi, Petrol and Diesel Emission Analyser includes the latest Cable-less Diesel DS2 Smokehead and the PD Com EOBD – our new technology sensing module for RPM and Oil Temperature measurement.
- Accredited to latest Euro 6 standards
- Ideal for checking vehicles compliant for low emission zones
- Designed for global PTI/ATF/MOT emission
- Fully compliant with UK & EU Roadworthiness Directive 2014/45/EU
- DVSA approved to Class 4, 5, 7.HGV, PSV, RPC, SVA & LFZ
- Colour monitor and a solid-state PC
- The Diesel DS2 Smokehead incorporates automatic calibration with every test. No more filters to lose or break
- Automatic gas bench self-draining system
- The Diesel pre heated DS2 Smokehead will operate down to -15C and in all weathers with 100 metres range from its Workstation
- Designed to complement the modern MOT test station for now and the future.
- Fully compliant with DVSA connectivity.
- Recall Results Feature
- Remote technical support
- Premier Diagnostics employed engineers.
We offer a number of packages including great value financing options, request a quote today by completing our contact form Here.
Premier Diagnostics Combi Specification
HC Measurements Range 0-30000 ppm vol. Prop.
CO Measurements Range 0-15% vol
CO2 Measurements Range 0-20% vol.
O2 Measurements Range 0-25% vol.
Lambda (l) Measurements Range 0-9.99
RPM Measurements Range 0-11999
Operating Temperature -15°C to 40°C
Smoke Head Operating Range 100 Meters
Control Cabinet Height (Including Monitor) 1460mm
Control Cabinet Width 800mm
Control Cabinet Depth 740mm
Control Cabinet Weight 90kg approx.
